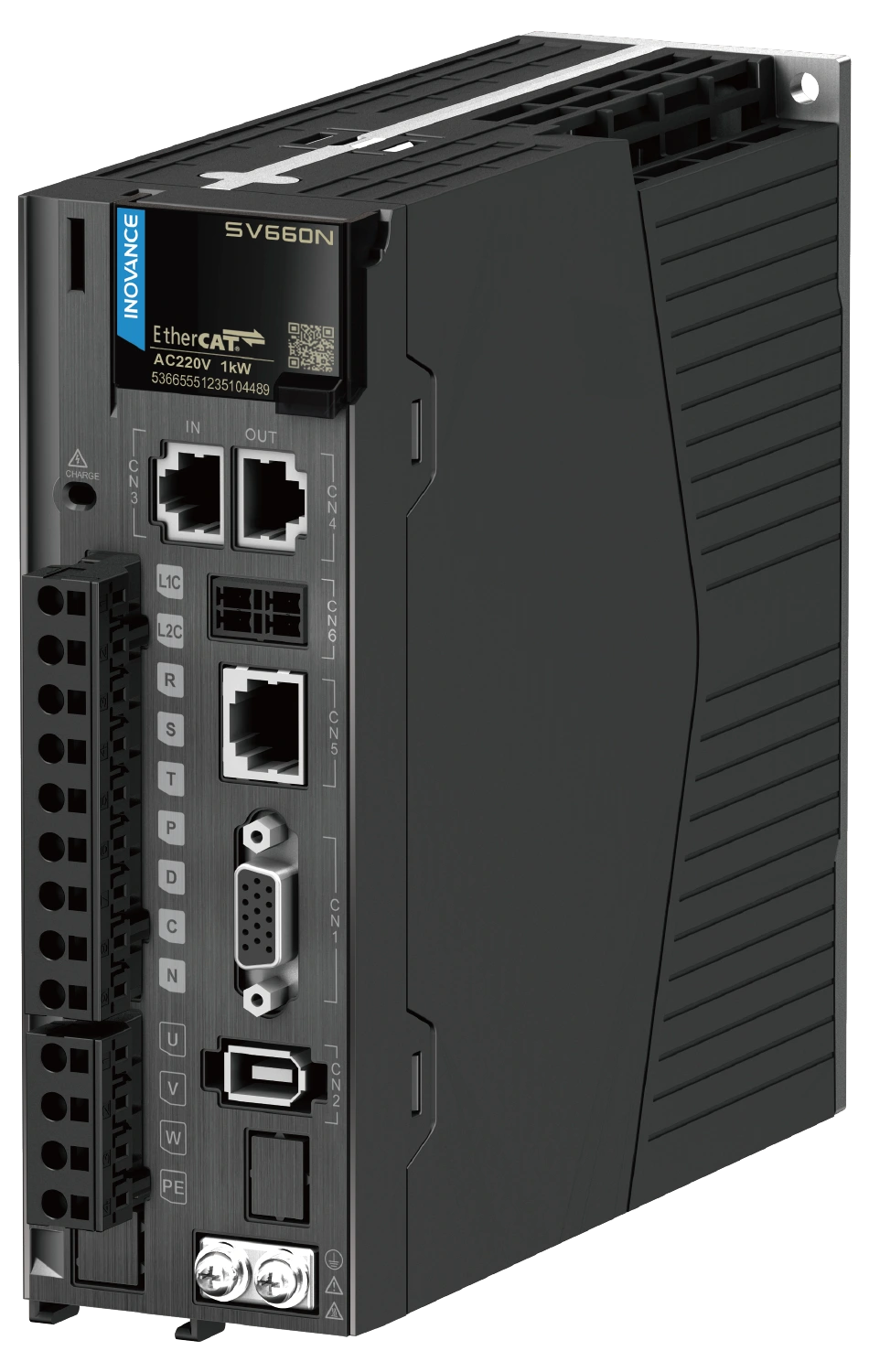

SV660N Servo drive
The SV660N servo drive features high dynamic performance and compactness, making it a reliable solution for industrial automation applications.
Description
SV660N – Single-Axis EtherCAT Servo
- Power of servo motors: 50W~7.55kW;
- STO function (SIL3);
- EtherCAT communication;
- Power supply: 1-phase 230V AC or 3-phase 380V AC;
- 7 EtherCAT operating modes: standard modes;(position/torque/speed), cyclic synchronous operation (position/torque/speed), homing;
- Speed control from 0 to 6000 rpm;
- 23-bit single-turn/multi-turn absolute encoder;
- Response frequency: 3kHz;
- Built-in braking module;
- Simplified servo tuning with STune/ETune functions;
- Free InoDriverShop utility software;
- Certificates: CE, UL.
Main features and functionality of the SV66ON
Improved performance with ultra-fast current loop
The 4.5 kHz current loop frequency allows the motor to follow position with minimal error. The drive has improved system performance with shorter settling times and higher throughput. In the case of mechanical resonance, high efficiency can be ensured by the use of notch filters (four band-stop filters available).
High speed EtherCAT communications – 125 μs
The SV660N series uses a high-performance processor for fast communication, achieving a cycle time of 125 μs for all EtherCAT operating modes.

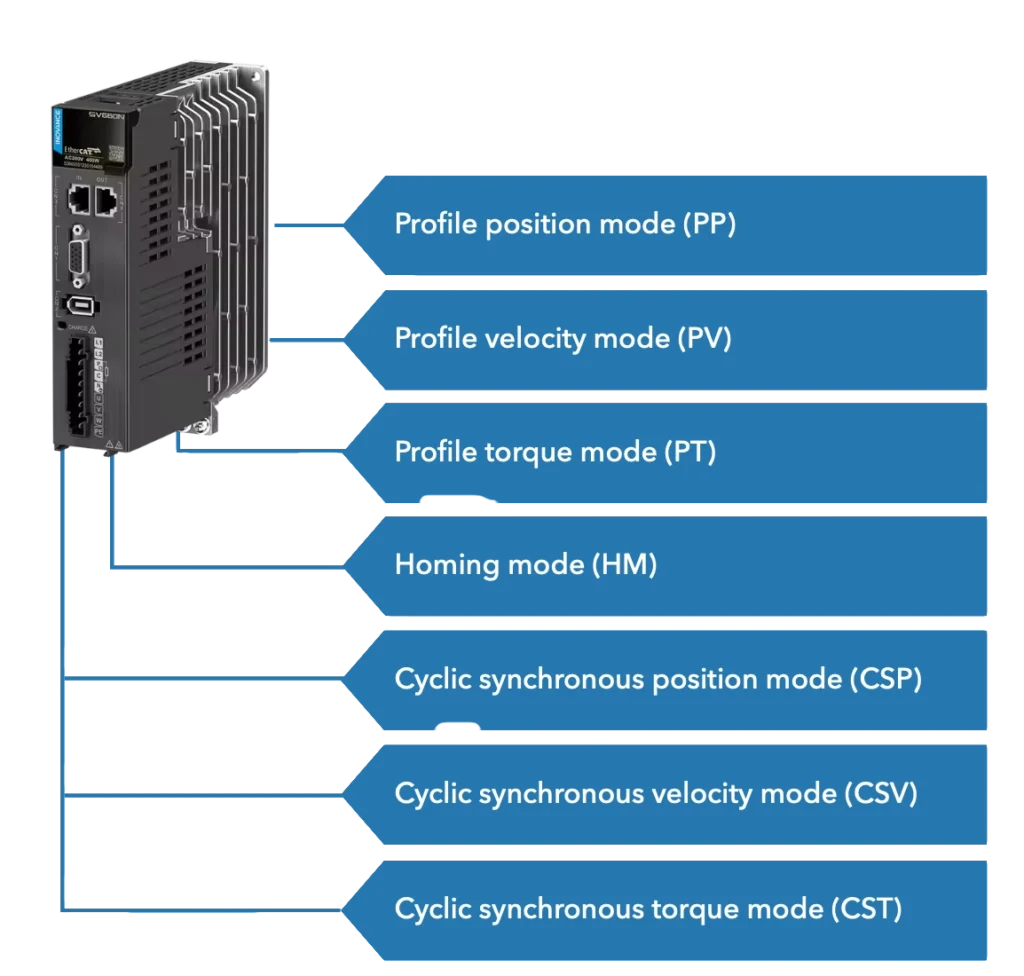

Seven EtherCAT CiA402 profile (CoE) operation modes are available
Accurate EtherCAT synchronization – 20 ns synchronization jitter
Throught precise operation of the EtherCAT distributed clock, SV660N achieves a 15 ns synchronization error and ± 20 ns synchronization jitter for 300 nodes (with a maximum distance of 120 m). Position control loops are coordinated with the synchronization signal to further improve the accuracy of multi-axes control.
Functional safety – STO SIL3 EN / IEC 61800-5-2 compliant

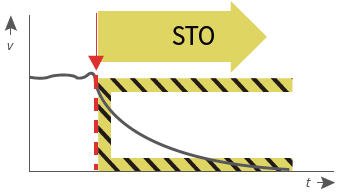

The STO function guarantees safe machine stop without
using additional contactors.
High resolution feedback encoder

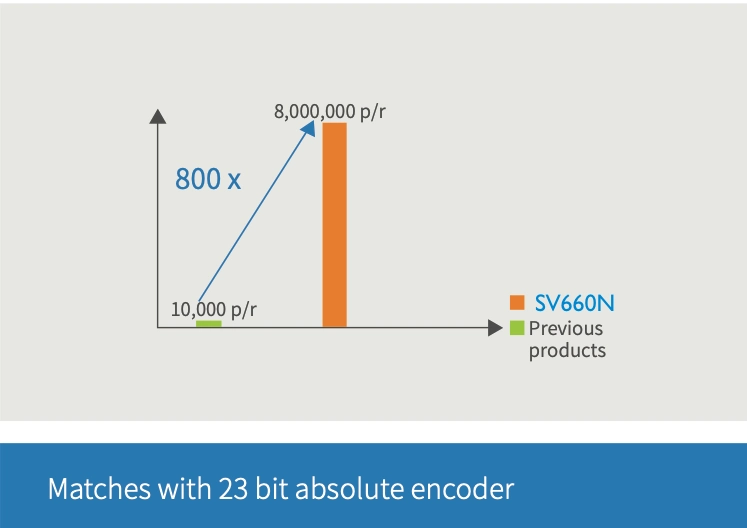

23-bit single/multi-turn absolute encoder provides 8388608 pulses (positions) for one revolution. By using a cable with a battery that maintains the speed memory, there is no need to homing the machine every time the power is turned on.
Short output winding
Standard, built-in, short output winding ensures safe braking if the drive is unexpectedly disabled – even in the case of a failure in the motor holding brake.
Solid and reliable – designed for difficult conditions
An insulated cooling channel prevents dust from contaminating internal electrical components. Conformal coated PCBs are resistant to 3S2 and 3C2 environments (per IEC 60721-3-3), providing additional protection.
Reduced panel size
SV660N offers a compact footprint and increased power density, with an average 30% smaller footprint than the previous generation.
Easy installation and fast commissioning
Pluggable connectors for both signal and power allows avoidance of wiring mistakes. Fine tuning is possible using the STune and ETune software functions, which are both designed for use in applications with small load inertia changes:
- STune – function for selecting drive parameters based on the manually entered stiffness value.
- ETune – the function automatically adjusts the optimal servo drive gain parameters to ensure the best performance.

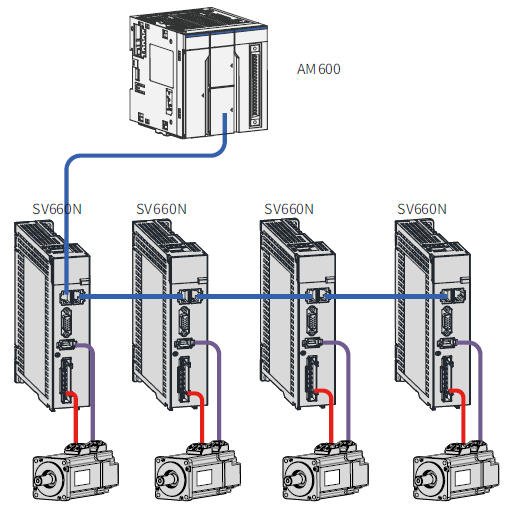

SV660N servo drive – application example:
Intuitive software tools
Easy cloning of drive parameters
From the utility software level, it is possible to clone the parameters of all SV660N drives operating in the EtherCAT network.

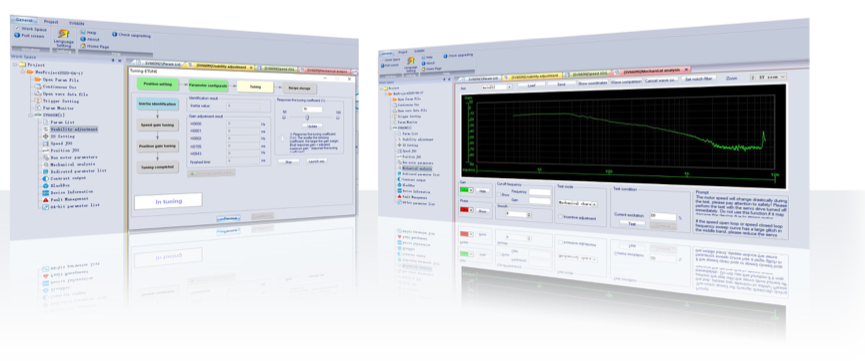

The easy-to-use InoDriverShop software allows you to quickly configure and start the servo drive. The graphical interface does not require any specialist knowledge from the user.
